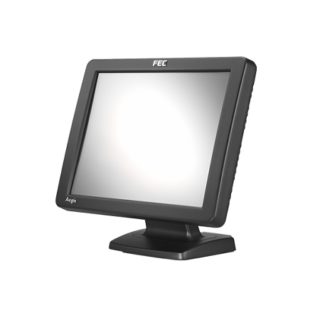

Aegis is a touch monitor that is offered in twelve inch and fifteen inch display models. The housing is made with aluminum and is extremely rugged.
Specifications
| Size | A-121 : 12” TFT LCD A-152 : 15” TFT LCD |
| Maximum Resolution | A-121 : 800 x 600 A-152 : 1024 x 768 |
| Contrast Ratio | 700 : 1 |
| LCD Brightness | A-121 : 330 cd/m2 A-152 : 250 / 450 cd/m2 |
| Touch Screen | 5-Wire Resistive Touch |
| Panel OSD Control | Brightness, Contrast, Sharpness, Autotune, Phase, H/V Position |
| Touch Screen Interface | 1 x COM (DB9) or 1 x USB (Type A) for Touch Screen Controller |
| Video Port | 1 x VGA (DB15) |
| Add-On Device | 1 x PS/2 for Magnetic Stripe Card Reader |
| DC-In Port | 1 x 2.5mm DC jack |
| Power Supply | 50W (12V/4.16A) External Power Adaptor |
| Housing Color | Black or Silver |
| Construction | Aluminum Die-casting |
| Dimensions (W x H x D) | A-121 : 320 x 278 x 200 mm A-152 : 360 x 330 x 200 mm |
| Mounting Holes | VESA 75 x 75mm |
| Net Weight | A-121 : 6 Kgs A-152 : 9 Kgs |
| Gross Weight | A-121 : 7 Kgs A-152 : 10 Kgs |
| Carton Size (W x H x D) | A-121 : 460 x 430 x 350 mm A-152 : 500 x 450 x 360 mm |
| EMI / Safety | CE, FCC |
| Operating Temperature | 0°C ~ 40°C |
