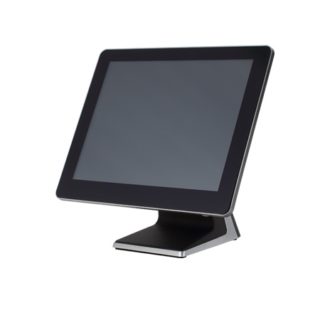

FEC has completely redesigned our newest Panel PCs. AerPPC offers selections of Freescale iMX6 Quad processors and features a modular design allowing it to be wall mounted or integrated with a base.
Specifications
| Processor | Freescale iMX6 Quad 1.0 Ghz |
| System Memory | DDR3 2GB (On Board) |
| Power Supply | 150W (12V / 12.5A) External Power Adaptor |
| Storage Device | eMMC 16GB (On Board) |
| Second Storage | Micro SD |
| Speaker | Internal Speaker 2W x 2 |
| Construction | Aluminum Die-casting + Plastic |
| Housing Color | Black with Silver Trim |
| Size / Resolution | 15” TFT-LED / 1024 X 768 |
| Brightness (Backlight Type) & Touch Screen | 350 cd/m2 (LED); Projected Capacitive Touch |
| I/O Ports | Serial Port: 2 x External: COM1 (DB9) & COM 2 (RJ45) with 0V / 5V / 12V Selectable by Jumper USB Port: 5 x External (USB 2.0 x 4; Panel USB 2.0 x 1; Side USB 2.0 x 1) Powered USB Port : 1 x 24V Cash Drawer Port : 1 x RJ11 (12V / 24V Selectable by Jumper) LAN Port :1 x RJ45 Gigabit LAN DC Input : 1 x 12V DC Wifi : 802.11 b / g / n (On Board) |
| Optional I/O Ports | Type A : 2 x Serial Port: COM 3 & COM 4 (DB9) with 0V / 5V / 12V Selectable by Jumper Type C : 2 x USB Port |
| Supported OS | Android 4.4.3 KitKat |
| Dimensions & Weight | Product (W x H x D) Without Base: 367 x 35 x 315 mm, 5.3 Kg With Base: 367 x 195 x 315 mm, 7 Kg Carton (W x H x D) : 548 x 515 x 352 mm, 8 Kg |
| Operation Conditions | Operating Temperature : 0˚C ~ 40˚C (32˚F ~ 104˚F) Storage Temperature : -20˚C ~ 60˚C (-4˚F ~ 130˚F) |
