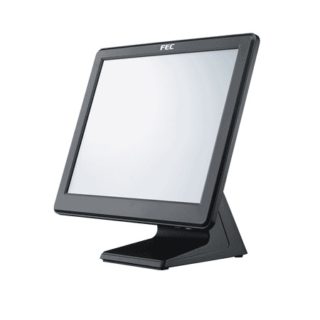

FEC has completely redesigned our newest Panel PCs. AerPPC offers selections of Intel Celeron, J1900 processors and features a modular design allowing it to be wall mounted or integrated with a base.
Specifications
| Processor | Intel® Celeron J1900 up to 2.42 Ghz |
| System Memory | 2GB Standard, Maximum 8GB (1 x 204-pin DDR3L) |
| Power Supply | 150W (12V / 12.5A) External Power Adaptor |
| Storage Device | 1 x 2.5” SATA HDD or SSD |
| Graphics | Intel HD |
| Speaker | Internal Speaker 2W x 2 |
| Construction | PP-9635A: Aluminum Die-casting + Plastic (with Bezel) PP-9635B,PP-9635C: Aluminum Die-casting + Plastic (Bezel-Free) |
| Housing Color | PP-9635A: Black PP-9635B,PP-9635C: Black with Silver Trim |
| Size / Resolution | 15” TFT-LED / 1024 X 768 |
| Brightness (Backlight Type) & Touch Screen | PP-9635A: 250 cd/m2 (LED); Projected Capacitive Touch PP-9635B,PP-9635C: 300 cd/m2 (LED); Projected Capacitive Touch |
| I/O Ports | Serial Port : 1 x External: COM1 (RJ45) with RI / 5V / 12V Selectable USB Port : 5 x External: (Rear USB 3.0 x 1; USB 2.0 x 3; Side USB 2.0 x 1) Powered USB Port : 1 x 24V Cash Drawer Port : 1 x RJ11 (12V / 24V) LAN Port :1 x RJ45 Gigabit LAN PCI Slot : 1 x Mini PCI-E (Internal / USB + PCI-E x 1) Video Port : 1 x VGA DC Input : 1 x 12V DC DC Output : 1 x 1 x 12V DC Jack 2.5 mm |
| Optional I/O Ports | Type A : 1 x Serial Port: COM 2 & COM 4 (DB9) with RI / 5V / 12V Selectable Type B : 2 x 12V Powered USB without 12V DC Jack Type C : 2 x USB Port |
| Supported OS | Windows 7, Windows Embedded POSReady 7, Windows 8.1, Windows Embedded 8.1 Industry, Windows 10 Enterprise |
| Dimensions & Weight | Product (W x H x D) Without Base: 366 x 293 x 39.5 mm, 3.2 Kg With Base: 366 x 334 x 220 mm, 4.9 Kg Carton (W x H x D) : 480 x 460 x 320 mm, 8 Kg |
