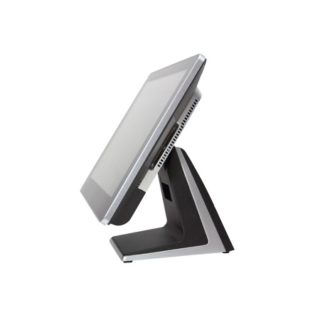

FEC proudly introduce brand new high performance AerPPC. PP-9645 is the world’s 1st modular All-in-One POS system with swappable panel & CPU. Equipped with Intel H81 Chipset and selections of Intel Celeron, Core i3 or i5 processors, PP-9645 is perfect for all retail and hospitality business owners!
Specifications
| Processor | Intel® Celeron G1820TE 2.20GHz Intel® Core i3-4330TE 2.40 GHz Intel® Core i5-4590T 3.0 GHz |
| System Memory | 1 x 2GB Standard, Maximum 16GB (2 x 8GB 204-pin DDR3L-1600) |
| Power Supply | 150W (12V / 12.5A) External Power Adaptor |
| Storage Device | 1 x 2.5” SATA HDD or SSD |
| Second Storage | Optional M.2 Storage Device |
| Speaker | Internal Speaker 2W x 2 |
| Construction | PP-9645A : Aluminum Die-casting + Plastic (with Bezel) PP-9645B, PP-9645C : Aluminum Die-casting + Plastic (Bezeless) |
| Housing Color | PP-9645A : Black PP-9645B, PP-9645C : Black with Silver Trim |
| Size / Resolution | 15” TFT-LED / 1024 X 768 |
| Brightness (Backlight Type) & Touch Screen | PP-9645A, PP-9645B : 350 cd/m2 (LED); 5-Wire Resistive Touch PP-9645C : 350 cd/m2 (LED); Projected Capacitive Touch |
| I/O Ports | Serial Port : 1 x External COM1(RJ45) with RI / 5V / 12V Selectable USB Port : 5 x External: (Rear USB 2.0 x 2, USB 3.0 x 2, Side USB 2.0 x 1) Powered USB Port : 1 x 24V Cash Drawer Port : 1 x RJ11 (12V / 24V) LAN Port :1 x RJ45 Gigabit LAN Video Port : 1 x VGA; 1 x DC Input : 1 x 12V DC DC Output : 1 x 1 x 12V DC Jack 2.5 mm Wifi : Optional 802.11b/g/n |
| Optional I/O Ports | Type C : 2 x Serial Port: COM 2 & COM 3 (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 12V Type G : 3 x 12V Powered USB Port Type K : 1 x Serial Port: COM 2 (DB9) RI / 5V / 12V Selectable; 2 x 12V Powered USB Port |
| Supported OS | Windows 7, Windows Embedded POSReady 7, Windows 8.1, Windows Embedded 8.1 Industry, Winodws 10 Enterprise |
| Dimensions & Weight | Product (W x H x D) Without Base: 364 x 291 x 53.9 mm, 5.2 Kg With Base: 364 x 329 x 210 mm, 6.8 Kg Carton (W x H x D) : 477 x 508 x 307 mm, 10 Kg |
| Operation Conditions | Operating Temperature : 0˚C ~ 40˚C (32˚F ~ 104˚F) Storage Temperature : -20˚C ~ 60˚C (-4˚F ~ 130˚F) |
