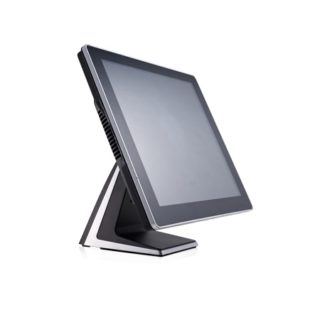

FEC has completely redesigned our newest Panel PCs. AerPPC offers selections of Intel Celeron, Core i3 or Core i5 processors and features a modular design allowing it to be wall mounted or integrated with a base.
Specifications
| Processor | Intel® Celeron® G540, 2.5Ghz Intel® Core i3-2120, 3.3Ghz Intel® Core i5-3550S, 3.0Ghz |
| System Memory | 2GB Standard, Maximum 8GB (1×204-pin DDR3) |
| Power Supply | 150W (12V / 12.5A) External Power Adaptor |
| Storage Device | 2.5” SATA HDD or SSD (Optional RAID 1 Support) |
| Graphics | Intel® H61 |
| Construction | Aluminum Die-casting + Plastic |
| Housing Color | Black with Silver Trim |
| Smart Management | Smart Management 2.0 Standard |
| Size / Resolution | 17” TFT-LCD / 1280 X 1024 |
| Brightness (Backlight Type) & Touch Screen | 250 cd/m2 (LED); 5-Wire Resistive Touch 350 cd/m2 (LED); Projected Capacitive Touch |
| I/O Ports | Serial Port : 3 x External: COM1 (DB9), COM2 (DB9), COM4 (RJ45) USB Port : 5 x External (4 Rear + 1 Side) Cash Drawer Port : 1 x RJ11 (12V) Printer Port :1 x Bi-directional Parallel Port Keyboard / Mouse : 1 x PS/2 LAN Port : 1 x RJ45 Gigabit LAN PCI Slot : 1 x Mini PCI-E (Internal) Audio Port : 1 x Line Out Video Port : 1 x VGA DC Input : 1 x 12V DC DC Output : 1 x 12V DC Jack 2.5 mm |
| Optional I/O Ports | Type A : Serial Port: COM A & COM B (RJ45) with RI / 5V / 12V Selectable; DC Output: 1 x 24V; 1 x Mic-in Type B : Serial Port: COM A & COM B (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 24V; 1 x Mic-in Type C : Serial Port: COM A & COM B (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 12V; 1 x Mic-in Type E : Cash Drawer Port: 2 x 24V ; 1 x Mic-in Type G : Powered USB Port: 3 x 12V Type H : Powered USB Port: 2 x 12V, 1 x 24V |
| Supported OS | Windows : Windows XP, POSReady 2009, Windows 7, POSReady 7, Windows Enterprise Linux : Per Request |
| Dimensions & Weight | Product (W x H x D) Without Base: 410 x 332 x 75 mm, 5.9 Kg With Base: 410 x 364 x 250 mm, 7.5 Kg Carton (W x H x D) Without Base: 525 x 430 x 200 mm, 7.8 Kg With Base: 560 x 540 x 360 mm, 10.8 Kg |
