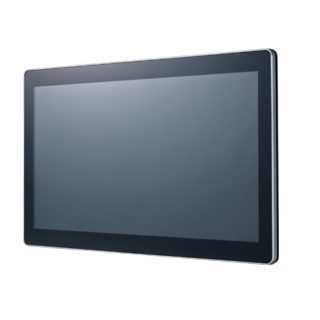

AerPPC PP-8102 is a fanless modular All-in-One panel PC. It equipped with Freescale processor to operate by Android OS. With MicroSD card slot, memory adding and access is extremely easy!
Specifications
| Processor | Freescale iMX6 Quad 1.0 Ghz |
| System Memory | DDR3 2GB (On Board) |
| Power Supply | 150W (12V / 12.5A) External Power Adaptor |
| Storage Device | eMMC 16GB (On Board) |
| Second Storage | Micro SD |
| Speaker | PP-8102C3, PP-8102C5: Internal Speaker 2W x 2 PP-8102K5: NA |
| Construction | Aluminum Die-casting + Plastic |
| Housing Color | Black with Silver Trim |
| Size / Resolution | 22” TFT-LED / 1920 X 1080 |
| Brightness (Backlight Type) & Touch Screen | PP-8102C3: 250 cd/m2 (LED); Projected Capacitive Touch PP-8102C5,PP-8102K5 : 300 cd/m2 (LED); Projected Capacitive Touch |
| I/O Ports | Serial Port: 2 x External: COM1 (DB9) & COM 2 (RJ45) with 0V / 5V / 12V Selectable by Jumper USB Port: 6 x External (USB 2.0 x 4; Panel USB 2.0 x 1; Side USB 2.0 x 1) Powered USB Port : 1 x 24V Cash Drawer Port : 1 x RJ11 (12V / 24V) LAN Port :1 x RJ45 Gigabit LAN Audio Port : 1 x Line Out (Mic in) DC Input : 1 x 12V DC DC Output : 1 x 1 x 12V DC Jack 2.5 mm |
| Optional I/O Ports | Type A : 2 x Serial Port: COM 3 & COM 4 (DB9) with 0V / 5V / 12V Selectable by Jumper Type C : 2 x USB Port |
| Supported OS | Android 4.4.3 KitKat |
| Dimensions & Weight | Product (W x H x D) : 530 x 338 x 49 mm, 5.7 Kg Carton (W x H x D) : 652 x 463 x 212 mm, 7 Kg |
| Operation Conditions | Operating Temperature : 0˚C ~ 40˚C (32˚F ~ 104˚F) Storage Temperature : -20˚C ~ 60˚C (-4˚F ~ 130˚F) |
