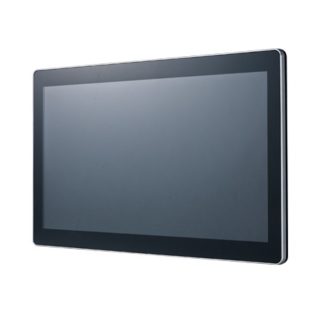

With innovative & smart design, PP-8642 is an advanced modular All-in-One panel PC. It equips with latest Intel H81 Chipset and offers selections of Intel Celeron, Core i3 or Core i5 processors for flexible applications. To enhance customer experience and increase marketing exposure, PP-8642 is your smartest choice.
| Processor |
Intel® Celeron G1820TE 2.20GHz
Intel® Core i3-4330TE 2.40 GHz
Intel® Core i5-4590T 3.0 GHz |
| System Memory |
1 x 2GB Standard, Maximum 16GB (2 x 8GB 204-pin DDR3L-1600)
|
| Power Supply |
150W (12V / 12.5A) External Power Adaptor
|
| Storage Device |
1 x 2.5” SATA HDD or SSD |
| Second Storage |
Optional M.2 Storage Device
|
| Speaker |
Internal Speaker 2W x 2
|
| Construction |
Aluminum Die-casting + Plastic |
| Housing Color |
Black with Silver Trim |
| Size / Resolution |
22” TFT-LED / 1920 X 1080
|
| Brightness (Backlight Type) & Touch Screen |
PP-8642C3 : 250 cd/m2 (LED); Projected Capacitive Touch (Option)
PP-8642C5 : 300 cd/m2 (LED); Projected Capacitive Touch
|
| Backlight MTBF |
PP-8642C3 : 30,000 HRs (Option)
PP-8642C5 : 50,000 HRs (Standard)
|
| I/O Ports |
Serial Port : 1 x External COM1(RJ45) with RI / 5V / 12V Selectable
USB Port : 5 x External: (Rear USB 2.0 x 2, USB 3.0 x 2, Side USB 2.0 x 1)
Powered USB Port : 1 x 24V
Cash Drawer Port : 1 x RJ11 (12V / 24V)
LAN Port :1 x RJ45 Gigabit LAN
Video Port : 2 x
DC Input : 1 x 12V DC
DC Output : 1 x 1 x 12V DC Jack 2.5 mm
Wifi : Optional 802.11b/g/n
|
| Optional I/O Ports |
Type C : 2 x Serial Port: COM 2 & COM 3 (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 12V
Type G : 3 x 12V Powered USB Port
Type K : 1 x Serial Port: COM 2 (DB9) RI / 5V / 12V Selectable; 2 x 12V Powered USB Port
|
| Supported OS |
Windows 7, Windows Embedded POSReady 7, Windows 8.1, Windows Embedded 8.1 Industry, Winodws 10 Enterprise
|
| Dimensions & Weight |
Product (W x H x D) : 530 mm x 338 mm x 62.3 mm, 8 Kg
Carton (W x H x D) : 652 mm x 463 mm x 212mm, 10 Kg |
| Operation Conditions |
Operating Temperature : 0˚C ~ 40˚C (32˚F ~ 104˚F)
Storage Temperature : -20˚C ~ 60˚C (-4˚F ~ 130˚F) |
