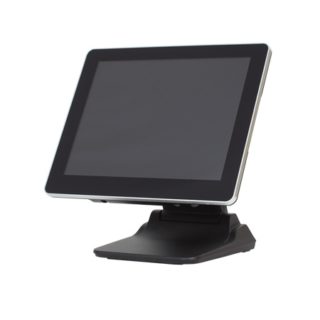

FEC proudly present better and lighter Panel PC featuring new Intel® processor AerPPC Lite PP-1453 & PP-1455. It is beautifully designed with multiple innovative features for modern business. This slim & light product system is extremely easy to be integrate with brand new AerTab AT-1450 as well as other FEC terminals and peripherals.
Key Features
- Ultra slim profile panel pc with tiny foot print, slim profile, foldable dual-hinge stand for outstanding space saving and amazing look.
- With different requirements,FEC offers 2 optional second I/O interfaces and 2 colors (black & Silver) of dual hinge stand.
- For PP-1455 FEC, provide single function devices such as MSR, iButton, fingerprint and RFlD reader. There are also 2-in-l devices available that combine MSR with an iButton, fingerprint or RFlD reader
- Customer Display allows for easy programming with escape sequence commands and features adjustable display height display swivel and tilt. LCD 2nd screen shows the latest store promotion and relevant information
- PP-l455 supports both Windows (Win 10) and Android (5.1) operation system to accommodate various software requirements
| Processor |
Intel Cherry Trail Quad Core Atom X5 Z8300 1.44G (Turboboost to 1.84G)
|
| System Memory |
Android : DDR3 2GB
Windows : DDR3 4GB
|
| Power Supply |
150W (12V / 12.5A) External Power Adaptor
|
| Storage Device |
Android :eMMC 32GB
Windows : eMMC 4GB
|
| Connection |
Wifi 802.11b / g / n 2.4Ghz; Bluetooth 4.0
|
| Speaker |
Speaker 2W x 2
|
| Construction |
Aluminum Die-casting + Plastic |
| Size / Resolution |
PP-1453 : 13.3” TFT-LED / 1366 X 768
PP-1455 : 15” TFT-LED / 1024 X 768
|
| Brightness (Backlight Type) & Touch Screen |
PP-1453 : 220 cd/m2 (LED); 5-Wire Resistive Touch / Projected Capacitive Touch
PP-1455 : 350 cd/m2 (LED); 5-Wire Resistive Touch / Projected Capacitive Touch
|
| I/O Ports |
USB Port: 5 x External (USB 3.0 x 1; USB 2.0 x 3; Side USB 2.0)
Cash Drawer Port : 1 x RJ11 (12V / 24V)
LAN Port :1 x RJ45 LAN
Audio Port : 1 x Line Out (Mic in)
Video Port : 1 x
DC Output : 1 x 12V DC Output
|
| Optional I/O Ports |
Type A : 1 x Power USB 12V / 3 x RJ45 COM
Type B : 1 x Power USB 24V / 3 x RJ45 COM
|
| Supported OS |
Android 5.1,Windows 10 Enterprise (64bit only)
|
| Dimensions & Weight |
Product (W x H x D)
PP-1453 : 340 x 290 x 220 mm, 3.3 Kg
PP-1455 : 360 x 330 x 220 mm, 3.7 Kg
Carton (W x H x D)
PP-1453 : 480 x 460 x 320 mm, 5 Kg
PP-1455 : 480 x 460 x 320 mm, 5.2 Kg
|
| Operation Conditions |
Operating Temperature : 0˚C ~ 40˚C (32˚F ~ 104˚F)
Storage Temperature : -20˚C ~ 60˚C (-4˚F ~ 130˚F) |
