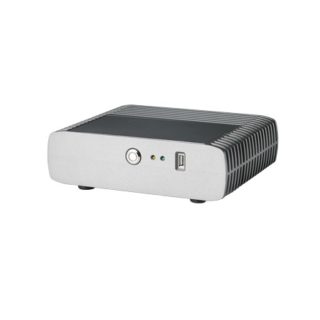

Featuring Intel Bay Trail, the BP-363 is the perfect Box System that works with your creativity on terminal placement. With numerous I/O options, never again worry about peripheral connectivity.
Key Features
- BP-363 is an incredibly compact solution and can be combined with many different FEC products.
- We offer many optional l/O to accommodate different point of sale solutions.
- Combined with a FEC universal mounting kit,BP-363 can be mounted on any flat surface
- Customize it : FEC can help create your logo using various materials.
| Processor |
Intel® Celeron J1900 up to 2.42 Ghz
|
| System Memory |
2GB Standard, Maximum 8GB (1 x 204-pin DDR3L)
|
| Power Supply |
150W (12V / 12.5A) External Power Adaptor
|
| Storage Device |
1 x 2.5” SATA HDD or SSD
|
| Chipset |
Intel HD
|
| I/O Ports |
Serial Port : 3 x External: COM1 (RJ45), COM2 / COM3 (DB9) with RI / 5V / 12V Selectable USB
USB Port : 6 x External (Rear USB 2.0 x 3, USB 3.0 x 1; Front USB 2.0 x 1, Powered USB 24V x 1)
Cash Drawer Port : 1 x RJ11 (12V / 24V)
Printer Port : By Request
LAN Port : 1 x RJ45 Gigabit LAN
Expansion Slot : 1 x Mini PCI-E (Internal / USB + PCI-E x 1)
Video Port : 1 x VGA ; 1 x
|
| Optional I/O |
Type A : Serial Port: COM A & COM B (RJ45) with RI / 5V / 12V Selectable; DC Output: 1 x 24V; 1 x Mic-in
Type B : Serial Port: COM A & COM B (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 24V; 1 x Mic-in
(Limited current when useing Power USB 24V)
Type C : Serial Port: COM A & COM B (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 12V; 1 x Mic-in
Type E : Cash Drawer Port: 2 x (RJ11)12V ; 1 x Mic-In
Type G : Powered USB Port: 3 x 12V
Type H : Powered USB Port: 1 x 24V, 2 x 12V (Limited current when useing Power USB 24V) |
| Supported OS |
Windows 7, Windows Embedded POSReady 7, Windows 8.1, Windows Embedded 8.1 Industry, Windows 10
|
| Dimensions & Weight |
Product (W x H x D) : 230.24 x 65 x 190.04 mm, 2.4 Kg
With Carton (W x H x D) :400 x 130 x 245 mm, 3.5 Kg
|
