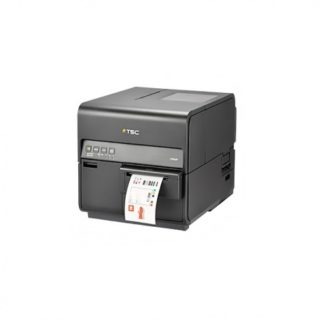

TSC CPX4 Series

TSC CPX4 Series

Drop us a line

The CPX4 Series from TSC are the ideal colour label printers for your customers in retail, hospitality and the industry who wish to print high quality long-wearing full colour labels on demand.

The colour label printers also print small labels (6 mm long) in various designs, which are non-fading, smudge-proof and waterproof – and that at a speed of up to 300 mm per second at an excellent resolution of 1,200 x 1,200 dpi. This makes the CPX4 Series well suited for labelling pallets, dangerous goods containers (CLP/GHS) and for creating colour seal labels (environment, energy class). The CPX4 Series may be seamlessly integrated into existing systems and is highly economical. The colour label printers are equipped with four separate 240 ml cartridges, so that your customers only need to exchange the empty ones. The intelligent print head fully automatically checks the nozzles for errors, to ensure for consistent results – for excellent colour label printing with no ifs or buts.

<

    <
  • Industrial colour label printers with inkjet technology
  • Also prints small labels (6 mm long)
  • Extremely fast printing up to 300 mm/sec. at 1,200 x 1,200 dpi
  • Economical, thanks to four separate ink cartridges
  • The results are smudge-proof, waterproof and non-fading
Al Redha Group © All Rights Reserved.2024
PRINTER MODEL CPX4D
Ink type Dye Dye Ink Pigment Ink
Max.resolution 1200 x 1200 dpi
Max.print speed 300 mm (11.8″)/second at 1200 x 600 dpi
Max. print length 397 mm (15.63″)
Physical dimension 386 mm (W) x 394 mm (H) x 570 mm (D)
15.20″ (W) x 15.51″ (H) x 22.44″ (D)
Weight(including battery) 25.5 kg
Label roll capacity 7.9″ OD (200 mm), 3″ ID (76 mm) core
Ink capacity 240 ml each (230 ml usable); * Starter ink tank: 105 ml
Ink color CMYK
Interface • USB2.0 Hi-speed
• Ethernet (Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T)
Power Input AC 100-240V, 1.5A, 50-60Hz, 233W Input: AC 100V-240V 50/60Hz,1.4A, 250W
Indicator • 8 LED indicators
Operation switch button 3 buttons (Pause, Feed, Back Feed)
Media type Roll-fed/fanfold, die cut; gap, black mark, continuous; matte paper, glossy paper, PET film, synthetic
Media length 6 ~ 400 mm
Media thickness 0.145 ~ 0.255 mm (5.71 ~ 10.04 mil)
Media core diameter 76.2 mm (3″)
Environment condition Operation: 15°C ~ 30°C, 10% ~ 90% Relative Humidity (non-condensing)
Storage 0°C ~ 35°C, 5% ~ 85% Relative Humidity (non-condensing)Operating systems Windows 10/8.1/Win 7 SP1 (32/64 bit)
Safety regulation CE, FCC, UL
Accessories • Starter ink tank
• Windows labeling software CD disk
• Quick start guide
• Power cord
Warranty 1 year for printer (consumable excluded)
Options Auto cutter
