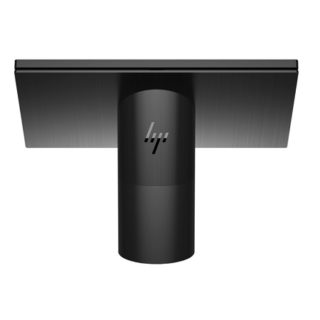

Retail redefined by design, the HP Engage One AiO System is built to meet the demands for your business and marks a new era in retail.
Key Features
- 14-inch diagonal display panel (wide-aspect ratio); FHD 1920 x 1080 resolution Projected Capacitive Touch Screen
- HP Engage One AiO System Integrated Column Printer
- Choice of 2 Engage One I/O Connectivity Bases
- HP Engage One AiO System Integrated MSR
- Recessed Power Button
| Model Choices |
Model 141: Anti-glare WLED SVA 300-nit panel or Anti-glare WLED UWVA 500-nit panel with FHD 1920 x 1080 resolution and an Intel Celeron 3965U 2.2GHz 2M 2133 2C6 processor
Model 143: Anti-glare WLED UWVA 500-nit panel with FHD 1920 x 1080 resolution and an Intel Core i3 -7100U 2.40GHz 3M 2133 2C6 processor
Model 145: Anti-glare WLED UWVA 500-nit panel with FHD 1920 x 1080 resolution and an Intel i5 -7300U 2.60GHZ 3MB 2133 2C6 processor |
| Color Choices |
Ebony Black
Ceramic White |
| Choice of operator display |
14” diagonal Wide Aspect ratio Projected Capacitive display; Full HD SVA 1920 x 1080 Resolution, Anti-glare
14”diagonal Wide Aspect ratio Projected Capacitive display; Full HD UWVA 1920 x 1080 Resolution, Anti-glare |
| Processor choices |
Intel Core i5-7300U with vPro(2.6GHz, 3M Cache, 2 Cores)
Intel Core i3-7100U (2.4GHz 3M Cache, 2 Cores)
Intel Core Celeron 3965U (2.2GHz, 2M Cache, 2 Cores) |
| Operating System choices |
Windows 10 Professional 64-bit
Windows 10 IoT Enterprise 2016 LTSB 64-bit
FreeDOS 2.0 |
| Connectivity Base Choices |
HP Basic I/O Connectivity Base
HP Advanced I/O Connectivity Base
HP USB-C Mini Dock |
| Integrated peripheral options |
HP Engage One MSR
HP Engage One Column Printer
HP Engage One Fingerprint Reader
HP Engage One Top Mount 2×20 CFD |
- Industry-standard 100mm VESA mounting pattern allows for flexible use without the optional stand (Mounting hardware sold separately)
- Choice of Fixed Position Stand, Rotate/Tilt Stand that allows for 10° angle adjustability & 180-degree rotation left or right, or no stand (display – head unit only) which includes 100mm VESA Mounting Bracket
- (2) Two DDR4 Memory Slots (32 GB Maximum)
- Realtek RTL8153 Ethernet Connection
- Realtek RTL8153 Ethernet Connection
- Trusted Platform Module (TPM 2.0)
- HP BIOSphere with HP Sure Start technology
- (1) M.2 drive bay
- Cable Management Features
- ENERGY STAR certified, EU Compliant, RoHS2 Compliant, EPEAT Gold
-
Basic Retail I/O connectivity Base: 120W, 88% efficient, active PFC (external)
- Advanced Retail I/O connectivity Base: 180W, 89% efficient, active PFC (external)
- Display Head unit Only 65W, 89% efficient at 20V, active PFC (external)
- Standard Warranty Options – 90/90/90, 1/1/1, 3/3/3; Plus Optional Care Packs
