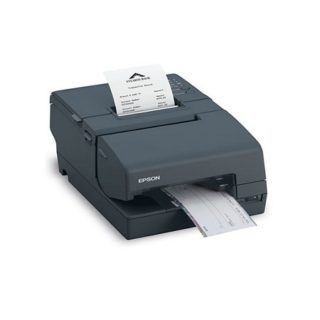

Epson TM-H6000

Drop us a line

The TM-H6000 multifunction Point-of-Sale (POS) printer with ProofPlus ID scanning combines high-speed, two-color receipt printing and superior slip handling with a fast and powerful ProofPlus ID scanner. It is the only printer with an integrated check and ID scanner that allows retailers and supermarkets to implement ECC, capturing check and ID images at the point-of-sale to lower check costs and reduce fraud and liability.

Key Features

Exclusive ProofPlus ID card scanning technology
TransScan digital check imaging technology
Industry-leading MICR reader with 99.9% accuracy
Fast two-color thermal receipt printing at 63 lps
Grayscale feature scans at 256 shades of gray
High-resolution graphics printing with no processing delay
Superior slip handling with built-in forms stopper
Most compact, durable design with the highest reliability in its class

Specifications

Print method recipt	Thermal line printing
Print method slip	9-pin serial impact dot matrix
Print method endorsement	8-pin shuttle impact dot matrix
Technology	Hybrid
Print speed slip	5.70 lps (40 columns, 17.80 cpi)
Print speed receipt	200 mm/sec
Column capacity receipt	Paper width 80 mm, 42 / 56
Column capacity slip	45 cps / 60 cps
Column capacity endorsement	40 cps
Character size receipt	1.41 mm (W) x 3.39 mm (H) / 0.99 mm (W) x 2.4 mm (H)
Character size slip	1.56 mm (W) x 3.1 mm (H) / 1.24 mm (W) x 3.1 mm (H)
Character size endorsement	1.1 mm (W) x 2.42 mm (H)
Character set receipt	95 Alphanumeric, 37 International, 128 x 11 Graphic
Character set slip	95 Alphanumeric, 37 International, 128 x 12 Graphic
Characters per inch slip	Slip: 13.3 cpi / 17.8 cpi
Dot density	180 DPI x 180 DPI
Colour Printing	Two Colors
Paper types	Receipt, Slip
Paper Thickness	0.06 mm – 0.09 mm
Copy capability slip	Three copies plus one original
Paper size endorsement	68 – 230 mm (W) x 68 – 297 mm (H), Min 68 – 152 mm
Paper size roll paper	79.50 ± 0.50 (W) mm x dia 83.00 mm
Paper size slip	68 – 230 mm (W) x 68 – 297 mm (H), Min 68 – 152 mm
Interfaces	Customer Display, Drawer kick-out, RS-232
Power Supply	PS-180 (option)
Power Consumption	Standby: 0.2 A, Mean Receipt unit: approx. 2 A, Mean Slip unit: approx. 2 A
Operating Voltage	24 V
Product dimensions	186‎ x 298 x 185 mm (Width x Depth x Height)
Product weight	5.3 kg
Colour	Epson Dark Grey / Epson Cool White
Installation	Horizontally
Interface connectors	D.K.D. function (2 drivers), Customer display port
Noise Level	Operation: 52 dB (A)
Humidity	Operation 10% – 90%, Storage 10% – 90%
Temperature	Operation 5° C – 45° C, Storage -10° C – 50° C
Reliability Receipt Printing	72,000,000 MCBF (Lines), 360,000 MTBF (Hours)
Reliability Slip Printing	29,000,000 MCBF (Lines), 180,000 MTBF (Hours)
Auto Cutter Life	1,500,000 Cuts
Print Head Life	100 km – 100,000,000 pulses
Printer Life	15,000,000 lines
Ribbon life slip	4,000,000 characters
Ribbon life endorsement	800,000 characters
Standards Compliance	EMC Standards : CE marking Safety standards : TUV
Other Features	Changeable interface : Yes Cutter : Partial Cut Factory options : Endorsement printer (E/P), MICR device, Validation Sensors : Front cover open sensor, Roll paper cover open sensor, Unit open sensor, Paper End Sensor, Paper Near End Sensor, Top of Form sensor, Bottom of Form sensor, Slip eject sensor
