Unique design, enhanced service

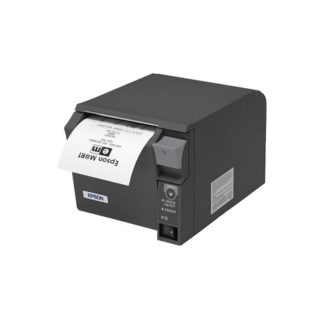

The first PoS printer with front-facing controls, the TM-T70 is specifically designed for under counter operations in retail and hospitality. With a range of core, user-friendly features including front paper feeding with drop-in paper rolls, auto-cutter, remote maintenance counter and easy access operator covers, the TM-T70 enables fast, easy transactions and enhanced customer service.
Advanced and high-performance
Offering the high quality and reliability of Epson’s world renowned TM-T88 series, the TM-T70 has advanced text, graphics and barcode printing capability. Unlike many other printers, the TM-T70 boasts the same quiet, high, print speed for both text and graphics.
Key Features
- Unique design
- Fully front operated, it fits under or on the counter
- Splash proof housing
- Ideal for the rough hospitality environment
- High print speed
- Doesn’t let customers wait
- Robust and reliable
- Saves cost for maintenance and service
| Print method |
Thermal line printing |
| Technology |
Themal Line |
| Print speed |
170 mm/sec
|
| Column capacity receipt |
Paper width 80 mm, 56 / 42 |
| Character set |
95 Alphanumeric, 48 International, 128 x 11 Graphic
|
| Character size |
0.99 mm (W) x 2.4 mm (H) / 1.41 mm (W) x 3.38 mm (H)
|
| Characters per inch |
20 cpi / 15 cpi
|
| Dot density |
180 DPI x 180 DPI |
| Colour Printing |
Single Colour |
| Paper Types |
Receipt |
| Paper size roll paper |
79.50 ± 0.50 (W) mm x dia 83.00 mm |
| Interfaces |
Drawer kick-out, RS-232 |
| Power Supply |
PS-180 (option)
|
| Power Consumption |
Standby: 0.1 A, Mean: 1.8 A |
| Operating Voltage |
24 V |
| Product dimensions |
125 x 194 x 114 mm (Width x Depth x Height) |
| Product weight |
1.8 kg |
| Colour |
Epson Dark Grey / Epson Cool White |
| Installation |
Horizontally |
| Interface connectors |
D.K.D. function (2 drivers) |
| Noise Level |
Operation: 55 dB (A) |
| Humidity |
Operation 10% – 90%, Storage 10% – 90% |
| Temperature |
Operation 5° C – 45° C, Storage -10° C – 50° C/td>
|
| Reliability |
52,000,000 MCBF (Lines), 360,000 MTBF (Hours) |
| Printer Life |
15,000,000 lines |
| Standards Compliance |
EMC Standards :CE marking
Safety standards : TUV |
| Other Features |
Cutter : Partial Cut
Changeable interface : Yes
Sensors : Paper End Sensor, Paper Near End Sensor, Cover Open Sensor |
