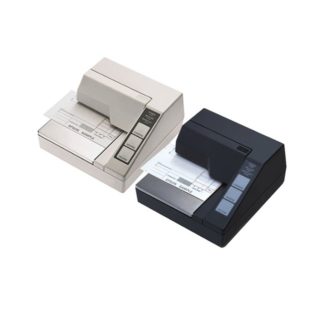

Epson TM-U295

Drop us a line

Compact and versatile

Ideal for cheque and credit authorisation terminals, the TM-U295 is incredibly compact, while at the same time offering printing versatility. Capable of many font options, it offers four print sizes, and also has the ability to print text vertically as well as horizontally.

User-friendly

The TM-U295’s flatbed design makes paper insertion easy and quick. It also offers user-friendly features such as an easy-to-operate touch panel and an automatic paper eject function

Key Features

Print method 7-pin, shuttle impact dot matrix
Interfaces RS-232, Bi-directional parallel
Data buffer 512 bytes or 35 bytes
Print speed 1.9 ~ 2.3 lps
Copy capability One original and two copies
Inked ribbon ERC-27 (Black)
Ribbon life 1,000,000 characters

Specifications

Print method	7-pin shuttle impact dot matrix
Technology	Serial Impact Dot Matrix
Print speed	1.90 ~ 2.30 lps
Column capacity receipt	Paper width 210 mm, 42 / 35
Column capacity slip	35 cps / 42 cps
Character size	1.6 mm (W) x 2.9 mm (H) / 1.3 mm (W) x 2.9 mm (H)
Character set	95 Alphanumeric, 32 set International, 128 x 4 Graphic
Characters per inch	13.5 cpi / 16.2 cpi
Colour Printing	Single Colour
Paper Types	Slip
Copy capability slip	Two copies plus one original
Paper size slip	80 – 182 mm (W) x 69 – 257 mm (H)
Interfaces	Drawer kick-out, RS-232
Data Buffer	512 Bytes or 35 Bytes
Power Supply	PS-180 (option)
Product dimensions	180‎ x 191 x 102 mm (Width x Depth x Height)
Product weight	1.6 kg
Colour	Epson Dark Grey / Epson Cool White
Installation	Horizontally
Noise Level	Operation: 65 dB (A)
Humidity	Operation 30% – 85%, Storage 30% – 90%
Temperature	Operation 5° C – 40° C, Storage -10° C – 50° C
Reliability	7,000,000 MCBF (Lines), 180,000 MTBF (Hours)
Printer Life	3,000,000 lines
Standards Compliance	EMC Standards : CE marking Safety standards : TUV
Other Features	Sensors : Top of Form sensor, Bottom of Form sensor
