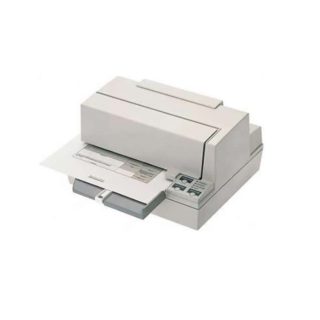

Multi-part, wide-slip printing
This fast wide-slip printer is extremely versatile and capable of handling a wide range of slip, cheque and invoice applications, as well as multi-part slips (four copies) up to 88 columns in width. It is ideal for environments such as banks, hotels or restaurants.
Fast and flexible
Its flatbed design makes paper insertion easy, speeding up transaction times and reducing queues at the point of sale. The TM-U590 features ESC/POS, providing high levels of flexibility and an easy upgrade path. Printer operation status is provided by the Automatic Status Back function.
Key Features
- Fast and quiet
- Plain paper printing capability
- 2-colour printing/ 4-colour printing
- Small footprint
- Permanent printing
| Print method |
9-pin shuttle impact dot matrix |
| Technology |
Serial Impact Dot Matrix |
| Print speed |
233 / 311 cps
|
| Column capacity receipt |
Paper width 210 mm, 88 / 66 |
| Column capacity slip |
66 cps / 88 cps |
| Character size |
1.6 mm (W) x 3.1 mm (H) / 1.3 mm (W) x 3.1 mm (H) |
| Character set |
95 Alphanumeric, 37 set International, 128 x 8 Graphic
|
| Characters per inch |
16.7 cpi / 12.5 cpi |
| Colour Printing |
Single Colour |
| Paper Types |
Slip |
| Copy capability slip |
Four copies plus one original |
| Paper size slip |
70 – 210 mm (W) x 70 – 297 mm (H) |
| Interfaces |
Customer Display, Drawer kick-out, RS-232 |
| Power Supply |
PS-180 (option) |
| Product dimensions |
252 x 205 x 185 mm (Width x Depth x Height) |
| Product weight |
5 kg |
| Colour |
Epson Cool White |
| Installation |
Horizontally |
| Noise Level |
Operation: 65 dB (A) |
| Humidity |
Operation 10% – 90%, Storage 10% – 90% |
| Temperature |
Operation 5° C – 45° C, Storage -10° C – 50° C |
| Reliability |
29,000,000 MCBF (Lines), 180,000 MTBF (Hours) |
| Printer Life |
12,000,000 lines |
| Standards Compliance |
EMC Standards : CE marking
Safety standards : TUV |
| Other Features |
Sensors : Cover Open Sensor, Top of Form sensor, Bottom of Form sensor
Changeable interface : Yes |
