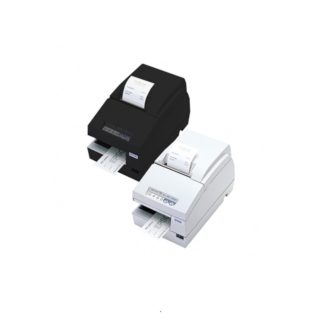

Epson TM-U675

Drop us a line

Fast and super-quiet, the TM-U675 is a compact multifunction printer, featuring single-insertion cheque printing (to eliminate paper jamming) and validation, auto-cutter and easy two-way paper-loading. It is also capable of printing journals using 2-part paper. ASB (Automatic Status Back) function automatically transmits changes in printer status.

Key Features

Print method 9-pin, serial impact dot matrix
Interfaces RS-232, bi-directional parallel, RS-485, USB, 10 Base-T I/F
Data buffer 4 KB or 45 bytes
Print speed Approx. 5.14 lps (at 40 columns, 17.8 cpi)
Inked ribbon ERC-32 (Black)
Ribbon life 4,000,000 characters

Specifications

Print method	9-pin serial impact dot matrix
Technology	Serial Impact Dot Matrix
Print speed	5.14 lps (40 columns, 17.80 cpi)
Column capacity receipt	Paper width 82.5 mm, 37 / 50
Column capacity slip	45 cps / 60 cps
Column capacity validation	45 cps / 60 cps
Character size recipt	1.56 mm (W) x 3.1 mm (H) / 1.24 mm (W) x 3.1 mm (H)
Character set	95 Alphanumeric, 37 set International, 128 x 12 Graphic
Characters per inch	13.3 cpi / 17.8 cpi
Colour Printing	Single Colour
Paper Types	Receipt, Slip, Validation
Copy capability slip	Two copies plus one original
Copy capability recipt	Two copies plus one original
Paper size roll paper	82.50 ± 0.50 (W) mm x dia 83.00 mm, 76.00 ± 0.50 (W) mm x dia 83.00 mm
Paper size slip	68 – 230 mm (W) x 68 – 297 mm (H)
Paper size validation	68 – 230 mm (W) x 68 – 230 mm (H)
Interfaces	Customer Display, Drawer kick-out, RS-232
Data Buffer	4 kB or 45 Bytes
Power Supply	PS-180 (option)
Power Consumption	Standby: 0.2 A, Mean: 1.8 A
Operating Voltage	24 V
Product dimensions	186‎ x 298 x 195 mm (Width x Depth x Height)
Product weight	4.8 kg
Colour	Epson Cool White
Interface connectors	D.K.D. function (2 drivers), Customer display port
Installation	Horizontally
Noise Level	Operation: 60 dB (A)
Humidity	Operation 10% – 90%, Storage 10% – 90%
Temperature	Operation 5° C – 45° C, Storage -10° C – 50° C
Reliability	37,000,000 MCBF (Lines), 180,000 MTBF (Hours)
Auto Cutter Life	1,000,000 Cuts
Printer Life	15,000,000 lines
Ribbon life slip	4,000,000 characters
Print Head Life	200 Mio Characters
Standards Compliance	EMC Standards : CE marking Safety standards : TUV
Other Features	Sensors : Validation sensor, Front cover open sensor, Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor, Top of Form sensor, Bottom of Form sensor, Slip eject sensor Cutter : Partial Cut Changeable interface : Yes
