Fast multipart printing

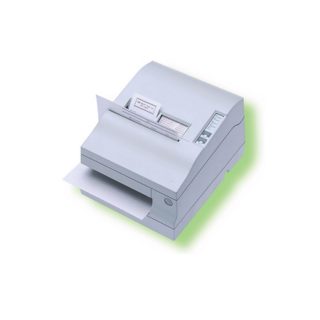

This versatile and reliable impact printer is ideal for receipts, journals and slips in most retail environments and is capable of driving two cash drawers. The TM-U950 is designed to handle jobs which need maximum information in the minimum time and can print slips with up to four copies, and also offers ultra-fast output of up to 88 columns on A4 paper.
Easy to use and maintain
It is also simple to use and maintain with easy paper loading, auto-cutter, plus security features such as paper-low detectors. An optional MICR device is available.
Key Features
- Wide slip paper capability (max. 88 characters per line, 7 x 9 font)
- High-speed printing up to 311 characters per second
- High throughput using bidirectional, small distance printing
- Excellent reliability
- Journal printing
- Up to 4 copies slip printing
| Print method |
9-pin serial impact dot matrix |
| Technology |
Serial Impact Dot Matrix |
| Print speed |
311 / 233 cps |
| Column capacity receipt |
Paper width 69.5 mm, 30 / 40 |
| Column capacity slip |
66 cps / 88 cps |
| Character size |
1.6 mm (W) x 3.1 mm (H) / 1.3 mm (W) x 3.1 mm (H) |
| Character set |
95 Alphanumeric, 32 set International, 128 x 8 Graphic
|
| Characters per inch |
16.7 cpi / 12.5 cpi |
| Paper Types |
Journal, Receipt, Slip |
| Copy capability slip |
Four copies plus one original |
| Paper size roll paper |
69.50 ± 0.50 (W) mm x dia 83.00 mm |
| Paper size slip |
70 – 210 mm (W) x 70 – 297 mm (H) |
| Interfaces |
Bidirectional parallel, Customer Display, Drawer kick-out, RS-232
|
| Power Supply |
PS-180 (option) |
| Power Consumption |
Standby: 0.3 A, Mean: 1.8 A |
| Operating Voltage |
24 V |
| Product dimensions |
251 x 298 x 195 mm (Width x Depth x Height) |
| Product weight |
5.6 kg |
| Colour |
Epson Cool White |
| Interface connectors |
D.K.D. function (2 drivers), Customer display port |
| Installation |
Horizontally |
| Noise Level |
Operation: 63 dB (A) |
| Humidity |
Operation 30% – 80%, Storage 30% – 90% |
| Temperature |
Operation 5° C – 40° C, Storage -10° C – 50° C |
| Reliability |
18,000,000 MCBF (Lines), 180,000 MTBF (Hours) |
| Printer Life |
7,500,000 lines |
| Ribbon life slip |
4,500,000 characters |
| Print Head Life |
150 Mio Characters |
| Standards Compliance |
EMC Standards : CE marking
Safety standards : TUV |
| Other Features |
Sensors : Cover Open Sensor, Slip eject sensor, Journal near-end sensor, Receipt near-end sensor, Journal paper sensor, Receipt paper sensor, Slip insertion sensor
Cutter : Partial Cut
Factory options : MICR device |
