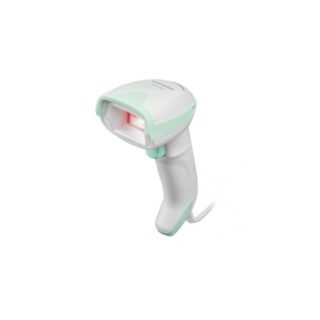

With the Gryphon 4500-HC Datalogic has developed a corded premium handheld scanner for hospitals, laboratories, nursing homes, pharmacies and other healthcare institutions. You will immediately take note of its design, with stylish and elegant contours, combined with excellent ergonomics. The anti-microbial-coated housing easily withstands regular disinfections, even when using harsh cleansers. The scanner is available with two different interfaces: a pure USB connection or a multi-interface with USB, RS232 and keyboard wedge.
Another very noticeable characteristic of the Gryphon 4500-HC is its white lighting, which not only protects the users’ eyes, but also is optimally suited for capturing color barcodes. Four light points and a crosshair in the scanning field provide clearly visible targeting assistance. It is also highly tolerant of movement, resulting in a scanner which quickly captures both 1D and 2D barcodes, even under unfavorable conditions (optionally also Digimarc barcodes). With its intuitive, simple handling the Gryphon 4500-HC is a real asset, particularly during the hectic day-to-day in healthcare.
Features
- Corded 2D scanner for healthcare
- USB port or multi-interface (USB, RS232 & keyboard wedge)
- Hygienic housing withstands frequent disinfections
- Warm white lighting with a practical targeting window
- Optional: invisible Digimarc barcode capture
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| 2D Codes |
Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Digital Watermarking |
Digimarc Barcodes |
| Current |
Operating::<300 mA @ 5V; < 200 mA @ 12V
Standby/Idle: < 90 mA @ 5V; <50 mA @ 12V |
| Input Voltage |
GD4520: 5 VDC
GD4590: 4.5 – 14.0 VDC |
| Ambient Light |
0 – 100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.8 m / 6 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
0-95% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
GD4520: USB only
GD4590: RS-232 / USB / Keyboard Wedge Multi-Interface |
| Colors Available |
Black; White |
| Dimensions |
16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in |
| Weight |
161.0 g / 5.7 oz |
| Image Capture |
Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| Imager Sensor |
1 Megapixel: 1280 x 800 pixels |
| Light Source |
Aiming: Red Laser 650 nm
Illumination: Warm White; Hyper Red LED for Digimarc |
| Motion Tolerance |
35 IPS |
| Print Contrast Ratio (Minimum) |
15% |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Dual Good Read LED, |
| Resolution (Maximum) |
High Density (HD): 1D Linear: 0.077 mm / 3 mils;PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils
Standard Range (SR): 1D Linear: 0.102 mm / 4 mils; PDF417: 0.127 mm / 5 mils; Data Matrix: 0.195 mm / 7.5 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
GD4500 Standard Range (SR)
Code 39: 5 mils: 7.0 to 38.0 cm / 2.7 to 14.9 in
Code 39: 10 mils: 2.2 to 58.0 cm / 0.8 to 22.8 in
Data Matrix: 10 mils: 5.5 to 27.0 cm / 2.2 to 10.6 i
Data Matrix: 15 mils: 2.8 to 41.0 cm / 1.1 to 16.1 in
EAN-13: 13 mils: 1.0 to 71.0 cm / 0.4 to 27.9 in
PDF417: 10 mils: 2.5 to 41.0 cm / 1.0 to 16.1 in
QR Code: 10 mils: 5.5 to 24.0 cm / 2.2 to 9.5 in
GD4500 High Density (HD)
Code 39: 3 mils: 5.0 to 15.0 cm / 2.0 to 5.9 in
Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in
Data Matrix: 5 mils: 5.5 to 9.0 cm / 2.2 to 3.5 in
Data Matrix: 10 mils: 2.0 to 27.0 cm / 0.8 to 10.6 in
EAN-13: 7.5 mils: 2.0 to 23.5 cm / 0.8 to 9.3 in
EAN-13: 13 mils: 1.0 to 40.0 cm / 0.4 to 15.7 in
PDF417: 4 mils: 3.0 to 12.0 cm / 1.2 to 4.7 in
PDF417: 10 mils: 0.5 to 31.0 cm / 0.2 to 12.2 in
QR Code: 10 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Laser Classfication |
Caution Laser Radiation – Do not stare into beam; IEC 60825 Class 2 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
5-Year Factory Warranty |
