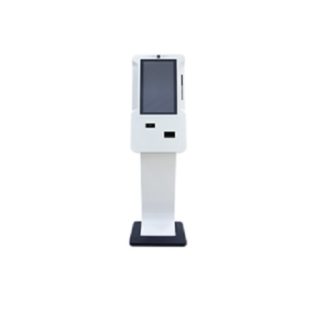

FEC KIOSK is standalone, versatile kiosk with flexibility configuration and customization. Despite streamline design, it still can integrate with rich components such as credit card readers, printer, scanner, camera, bill acceptor,…etc. The front door even provides quick service access when simple maintenance is required.
| Size |
21.5” TFT-LED / 9:16 |
| Resolution |
1080 x 1920 |
| Backlight MTBF |
300nits / 50K hrs |
| Processor |
PP-8642K5 : Intel® Haswell (H-81) Chipset/ Intel® Celeron G1820TE 2.20 GHz /Intel® i3-4330TE 2.40 GHz /Intel® i5-4590T up to 3.0 GHz
PP-8632K5 : Intel® Bay Trial/Intel® Celeron Quad Core/Intel® J1900 up to 2.4Ghz
PP-8102K5 : Freescale iMX6 Quad-Core 1.0 Ghz |
| System Memory |
PP-8642K5 : DDR3L Standard 4G ; Max 16G
PP-8632K5 : DDR3L Standard 4G ; Max 8G
PP-8102K5 : DDR3 Standard 2G (On Board) |
| Power Supply |
150W (12V / 12.5A) External Power Adaptor |
| Storage Device |
1 x 2.5” SATA HDD or SSD |
| Serial Port |
PP-8642K5 : 3 x External: (RJ x3)
PP-8632K5 : 3 x External: (RJ x1; DB9 x2)
PP-8102K5 : 4 x External: (RJ x1; DB9 x3)
|
| USB Port |
PP-8642K5 : 5 x External (4 Rear + 1 Side)
PP-8632K5 : 6 x External (4 Rear + 1 Panel + 1 Side)
PP-8102K5 : 5 x External (4 Rear + 1 Panel ) |
| Video Port |
PP-8642K5,PP-8632K5 : 2 x
PP-8102K5 : N/A |
| Other I/O Ports |
Powered USB Port : 1 x 24V
Cash Drawer Port : 1 x RJ11 (12V / 24V)
LAN Port : 1 x RJ45 Gigabit LAN
DC Input : 1 x 12V DC
DC Output : 1 x 12V DC Jack 2.5 mm
Wifi : 802.11 b / g / n (Optional) |
| Optional Add On |
Image Scanner/ IR Sensor / ISO 1/2+JIS2, MSR (Dual Head) / ISO1/2/3 MSR (Single Head )/ Camera 2M, V:870 / YJ3300 Handy Scanner / Honeywell N3680 Scanner / RFID 13.56k / 3 W Sepaker with Amplifier |
| Supported OS |
PP-8642K5,PP-8632K5 : Windows 7, POSReady 7, Windows 10 Enterprise
PP-8102K5 : 4.4.3 Jelly Bean
|
| Dimensions & Weight |
Product (W x H x D) 500 mm x 1500/1700 mm x 400 mm |
