| Bluetooth Wireless Technology |
Maximum number of devices per base station: 7 |
| Profiles |
HID (Human Interface Device)
SPP (Serial Port Profile) |
| Protocol |
Bluetooth 3.0 Certified Class 1 |
| Radio Frequency |
2.4 GHz to 2.48 Ghz |
| Radio Range (Open Air) |
Class 1: up to 100 m / 328 ft
Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results. |
| Security |
Data Encryption; Scanner Authentication |
| Decoding Capability |
GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F |
| Battery |
Battery Type: Lithium-Ion 2150 mAh |
| Charge Time |
External Power: 4 Hours; Host Power: 10 hours |
| Reads Per Charge |
Continuous Reading: 50,000 + |
| Cradle Indicator LEDs |
Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow) |
| Current |
External Power: max. 10 W (charging)
POT: max. 500 mA (charging) |
| Input Voltage |
10 – 30 VDC, POT: 5 VDC +/- 10% |
| Ambient Light |
Immune to light exposure in offices/facilities and direct exposure to sunlight |
| Drop Resistance |
Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
20 kV |
| Humidity (Non-condensing) |
0-95% |
| Particulate And Water Sealing |
IP65 |
| Temperature |
Operating: -20 to 50 °C / -4 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
Keyboard Wedge RS-232; USB: OEM USB; USB COM; USB HID Keyboard; Optional Ethernet (Standard, Industrial) |
| Colors Available |
Yellow/Black |
| Dimensions |
Cradle: 24.0 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in

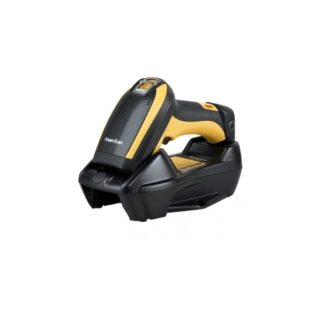

PBT9100: 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in |
| Weight |
Cradle: 380.0 g / 13.4 oz
PBT9100-XX: 405.0 g / 14.2 oz |
| Light Source |
Green LED |
| Print Contrast Ratio (Minimum) |
15% |
| Reading Angle |
Pitch: +/- 75; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70° |
| Reading Indicators |
Beeper; Datalogic Three Green Lights (3GL™) Good Read Feedback; Datalogic ‘Green Spot’ on the Code |
| Resolution (Maximum) |
2.5 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
Code 39
5 mils: 3.0 to 32.0 cm / 1.2 to 12.6 in
7.5 mils: 2.0 to 48.0 cm / 0.8 to 18.9 in
10 mils: 2.0 to 66.0 cm / 0.8 to 26.0 in
20 mils: 3.0 to 110.0 cm / 1.2 to 43.3 in
40 mils: 3.0 to 230.0 cm / 1.2 to 90.6 in
EAN 13
2.0 to 61.0 cm / 1.2 to 24.0 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| LED Classification |
Product compliant according to IEC 62471 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Available on request |
| Warranty |
3-Year Factory Warranty |
