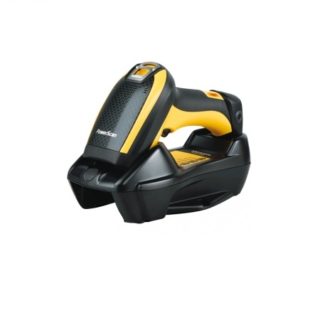

PowerScan PBT9500

Drop us a line

In order to also guarantee a high degree of flexibility in industrial environments, Datalogic has expanded its PowerScan 9500 Series to include a Bluetooth variant. The PBT9500 offers a radius up to 100 m, a powerful scan engine for 1D and 2D barcodes and extreme robustness for use in any surrounding. For assembly lines and other industrial work areas the PBT9500 gives you everything you need: it is robust and withstands drops from heights of 2 m, is IP65-certified and fully operational within a temperature range of -20 to +50 °C. Even during longer periods of operation the battery lasts longer than one shift: up to 30,000 scans are possible with one charge.

According to the barcode resolution the PBT9500 has a scanning radius from direct contact up to 1 m. For particularly high resolution barcodes choose the high performance version over the standard variant. The high performance version is equipped with a highly innovative liquid lens, and combines the high density, extended range and standard variants in one device.

Features

Wireless Bluetooth industrial scanner for the harshest surroundings
High degree of independence with to up to 100 m radius
Captures 1D and 2D barcodes as well as DPM and images quickly and reliably
Aggressive reading performance through powerful decoding unit
IP65-certified against dust and water

Specifications

Bluetooth Wireless Technology	Piconet: Max. Readers per Radio Receiver Using Commercial Dongle: 7; Using Cradle: 4
Profiles	HID (Human Interface Device) SPP (Serial Port Profile)
Protocol	Bluetooth 3.0 Certified Class 1
Radio Frequency	2.4 GHz to 2.48 Ghz
Radio Range (Open Air)	Class 1: Exceeds 90 m/295 ft Range distances are measured using the basestation. Range with connection to other Bluetooth peripherals may show different results.
Security	Data Encryption; Scanner Authentication
Digital Watermarks	Includes Digimarc Barcodes
1D / Linear Codes	Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
2D Codes	Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes	Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
Stacked Codes	EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites.
Battery	Battery Type: Lithium-Ion 2150 mAh Charge Time: External Power: 4 hrs; Host Power: 10 Hours
Reads Per Charge	Continuous Reading: 30,000 +
Cradle Indicator LEDs	Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)
Current	Charging (Typical): External Power: 800 mA @ 10 VDC; POT: 500 mA @ 5 VDC
Operating (Typical)	150 mA @ 10 VDC
Input Voltage	External Power: 10-30 VDC; POT: 5 VDC +/- 10%
Ambient Light	0 – 100,000 lux
Drop Resistance	Withstands 50 drops from 1.2 m / 6.6 ft onto a concrete surface.
ESD Protection (Air Discharge)	20 kV
Humidity (Non-condensing)	95%
Particulate And Water Sealing	IP65
Temperature	Operating: -20 to 50 °C / -4 to 122 °F Battery Charging: 0 to 45 °C / 32 to 113 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F
Interfaces	RS-232; USB COM; USB HID Keyboard
Colors Available	Yellow/Black
Dimensions	Cradle: 24.0 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in PBT9500: 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in
Weight	380.0 g / 13.4 oz
Image Capture	Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
Imager Sensor	PBT9530: 864 x 544; PBT9530-HP: 1280 x 1024
Light Source	Aiming: 630 – 680 nm VLD Illumination: White LEDs
Print Contrast Ratio (Minimum)	15%
Reading Angle	Pitch: +/- 40°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 40°
Reading Indicators	Beeper (Adjustable Tone and Volume); Datalogic’s 3GL (Three Green Lights) technology and loud beeper for good-read feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs
Resolution (Maximum)	PBT9530: 1D Codes: 4 mil; 2D Codes: 7.5 mil PBT9530-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
Depth Of Field	Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent. PBT9530 4 mils 6.0 to 17.0 cm / 2.3 to 6.7 in 7.5 mils Data Matrix 9.0 to 12.0 cm / 3.5 to 4.7 in 10 mils Data Matrix 4.0 to 18.0 cm / 1.5 to 7.0 in 10 mils PDF417 2.0 to 25.0 cm / 0.8 to 9.8 in 13 mils 4.0 to 45.0 cm / 1.5 to 17.7 in 20 mils 4.0 to 55.0 cm / 1.5 to 21.6 in 40 mils 4.0 to 85.0 cm / 1.5 to 33.4 in PBT9530-HP 2.5 mils 2.0 to 6.0 cm / 0.8 to 2.3 in 4 mils Data Matrix 2.0 to 6.0 cm / 0.8 to 2.3 in 10 mils Data Matrix 2.0 to 20.0 cm / 0.8 to 7.8 in 10 mils PDF417 2.0 to 30.0 cm / 0.8 to 11.8 in 13 mils 3.0 to 60.0 cm / 1.1 to 23.6 in 20 mils 3.0 to 70.0 cm / 1.1 to 27.5 in 40 mils 3.0 to 110.0 cm / 1.1 to 43.3 in
Agency Approvals	The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance	Complies to China RoHS, Complies to EU RoHS, Complies to R.E.A.C.H.
LED Classification	IEC 62471 Class 1 LED
Laser Classification	Caution Laser Radiation – Do not stare into beam CDRH Class II: IEC 60825 Class 2
Datalogic Aladdin	Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JavaPOS	JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.
Remote Host Download	Available on request
Warranty	3-Year Factory Warranty
