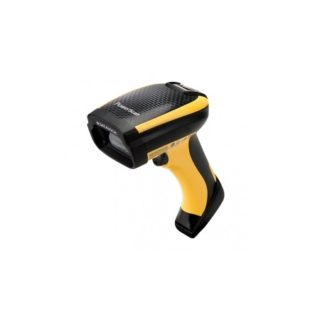

The robust PD9100 linear imager is an industrial variant in Datalogic’s proven PowerScan family. It withstands multiple drops or impacts, for example, at the warehouse shelf, and is IP65-certified against the ingress of dust and liquids. Because of its broad operating temperature range (-20° to +50° C) it is usable in a variety of areas. The user is supported by the scanner’s insensitivity to (diffused) lighting conditions, which is sometimes the case in industrial halls or logistics centers. But even in direct sunlight it does not falter. Together with the practical targeting feature and 3GL feedback, the PD9100 is ideally suited for the capture of current stock on hand, support during inventory or for processing incoming goods.
The PD9100 comes with the following standard interfaces: USB, keyboard wedge and RS232. As you are accustomed to with Datalogic, the user-friendly configurations program »Aladdin« also supports the PD9100. Thus, the scanner is quickly ready for use and easily configured.
Features
- Industrial 1D linear imager for warehouse and logistics
- Ergonomic grip and balanced weight distribution
- Practical targeting feature and 3GL feedback with patented »Green Spot« technology
- Impact-resistant up to 2 m; dust and splash water-protected according to IP65
- Security: three-year warranty
| Decoding Capability |
GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F |
| Current |
Operating (Typical): PD9130: 440 mA @ 4.5 V; 380 mA @ 5 V; 75 mA @30 V |
| Input Voltage |
4.5 – 30 VDC |
| Ambient Light |
Immune to light exposure in offices/facilities and direct exposure to sunlight |
| Drop Resistance |
Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
20 kV |
| Humidity (Non-condensing) |
0-95% |
| Particulate And Water Sealing |
IP65 |
| Temperature |
Operating: -20 to 50 °C / -4 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
Keyboard Wedge RS-232; USB |
| Dimensions |
21.2 x 11.0 x 7.4 cm / 8.4 x 4.3 x 2.9 in |
| Colors Available |
Yellow/Black. |
| Weight |
340.0 g / 11.9 oz |
| Light Source |
Green LED |
| Print Contrast Ratio (Minimum) |
15% |
| Reading Angle |
Pitch: +/- 75°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70° |
| Reading Indicators |
Beeper; Datalogic Three Green Lights (3GL™) Good Read Feedback; Datalogic ‘Green Spot’ on the Code; Dual Good Read LEDs; |
| Resolution (Maximum) |
2.5 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
Code 39
5 mils: 3.0 to 32.0 cm / 1.2 to 12.6 in
7.5 mils: 2.0 to 48.0 cm / 0.8 to 18.9 in
10 mils: 2.0 to 66.0 cm / 0.8 to 26.0 in
20 mils: 3.0 to 110.0 cm / 1.2 to 43.3 in
40 mils: 3.0 to 230.0 cm / 1.2 to 90.6 in
EAN 13
2.0 to 61.0 cm / 0.8 to 24.0 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| LED Classification |
Product compliant according to IEC 62471 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Available on request |
| Warranty |
3-Year Factory Warranty |
