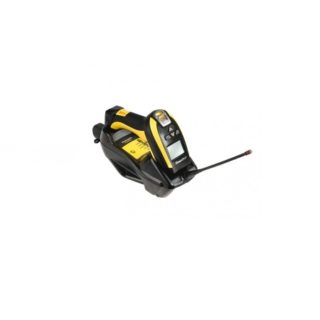

PowerScan PM9300

Drop us a line

The mobile scanner PowerScan PM9300 offers the same professional and robust characteristics as the wired variants. The robust housing made of durable plastic makes the laser scanner a true all-rounder in continuous daily use in industry and retail. Furthermore, the wireless devices allow for particularly long working hours, thanks to their high performance battery. With over 50,000 scans per charge and a short charging time of only four hours, it is suitable for all applications in production and logistics. To ensure for simple barcode capture even in very noisy environments, it has a clearly audible beeper (which is volume-configurable), especially bright LEDs and a targeting point for simplified orientation.

The laser scanner features high resolution and a large reading distance. The barcode scanners, in conjunction with a fast microprocessor, recognize all common one-dimensional barcodes. The PowerScan PM9300 wirelessly transmits data about license and registration-free radio communication on the 433 MHz frequency range and communicates bi-directionally between the scanner and host.

Features

Robust 1D barcode scanner for industrial areas of operation
Mobile, wireless variant of the professional scanner
High ergonomics and flexibility: wireless range up to 100 m
All interfaces in one device: USB, RS232 and keyboard wedge
With patented »Green-Spot« – facilitates capture

Specifications

Datalogic Star Cordless System	Point-to-Point Configuration, Multi-Point Configuration:Max. Readers per Radio receiver: 16
Radio Frequency	433 MHz; 910 MHz
Radio Range (Open Air)	433 MHz: 50 m / 164 ft at 500 KB/s; 100 m / 328 ft at 19.2 KB/s 910 MHz: 50 m / 164 ft at 500 KB/s;400 m / 1,312 ft at 36.8 KB/s, frequency hopping 50 m / 164 ft at 36.8 KB/s, fixed channel; Seamless Roaming; Two Way Communications
Decoding Capability	PM9300-XX GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F PM9300-ARXX GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 32, Codabar, Interleaved 2 of 5, Standard 2 of 5, MSI, Code 93
Battery	Battery Type: Lithium-Ion 2150 mAh Charge Time: External Power: 4 hrs; Host Power: 10 Hours
Reads Per Charge	Continuous Reading: 50,000 +
Cradle Indicator LEDs	Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)
Current	External Power: max. 10 W (charging) POT: max. 500 mA (charging)
Input Voltage	External : 10 – 30 VDC, POT: 5 VDC +/- 10%
Ambient Light	Immune to light exposure in offices/facilities and direct exposure to sunlight
Drop Resistance	Withstands 50 drops from 2.0 m / 6.5 ft onto a concrete surface.
ESD Protection (Air Discharge)	20 kV
Humidity (Non-condensing)	0-95%
Particulate And Water Sealing	IP65
Temperature	Operating: -20 to 50 °C / -4 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F
Interfaces	Keyboard Wedge RS-232; USB: OEM USB; USB COM; USB HID Keyboard; Optional Ethernet (Standard, Industrial)
Dimensions	Cradle: 24.0 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in PM9300: 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in
Colors Available	Yellow/Black
Display	PM9300-D, PM9300-DK: Display Type: Graphic with White Backlight; Font Dimensions: User selectable (6 lines x 21 columns default); Screen Dimensions: 48 x 132 pixels
Keypad	PM9300-D: 4 Configurable Keys PM9300-DK: 16 Configurable Keys
Weight	PM9300-XX: 405.0 g / 14.2 oz PM9300-ARXX, PM9300-DXX / PM9300-DKXX: 435.0 g / 15.3 oz PM9300-DARXX / PM9300-DKARXX: 465.0 g / 16.4 oz
Light Source	630 – 680 nm VLD
Print Contrast Ratio (Minimum)	25%
Read Rate	PM9300-XX: 104 +/- 12 scans/sec.; PM9300-ARXX: 35 +/- 5 scans/sec.
Reading Angle	PM9300-XX: Pitch: 40°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65° PM9300-ARXX: Pitch: 60°; Roll (Tilt): +/- 10°; Skew (Yaw): +/- 65°
Reading Indicators	Beeper (Adjustable Tone and Volume); Datalogic Three Green Lights (3GL™) Good Read Feedback; Datalogic ‘Green Spot’ on the Code; Dual Good Read LEDs; Good Transmission
Resolution (Maximum)	PM93X0: 0.076 mm / 3 mils; PM93X0 Auto Range: 0.190 mm / 7.5 mils
Depth Of Field	Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent. PM9300: Code 39 5 mils: 1.5 to 28.0 cm / 0.4 to 11.8 in 7.5 mils: 1.5 to 42.0 cm / 0.6 to 16.5 in 10 mils: 2.0 to 50.0 cm / 0.8 to 19.7 in 20 mils: 2.0 to 110.0 cm / 0.8 to 43.3 in 40 mils: 2.0 to 160.0 cm / 0.8 to 63.0 in EAN 13: 2.5 to 65 cm / 1.0 to 25.6 in PM9300 AR: Code 39 7.5 mils: 9.0 to 50.0 cm / 3.5 to 19.7 in 10 mils: 14.0 to 85.0 cm / 5.5 to 33.5 in 15 mils: 15.0 to 155.0 cm / 5.9 to 61.0 in 20 mils: 15.0 to 220.0 cm / 5.9 to 86.6 in 40 mils: 20.0 to 340.0 cm / 7.9 to 133.9 in 55 mils: 25.0 to 420.0 cm / 9.8 to 165.4 in
Agency Approvals	The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance	Complies to China RoHS, Complies to EU RoHS
Laser Classification	Caution Laser Radiation – Do not stare into beam CDRH Class II: IEC 60825 Class 2
Datalogic Aladdin	Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JavaPOS	JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.
Remote Host Download	Available on request
Warranty	3-Year Factory Warranty
