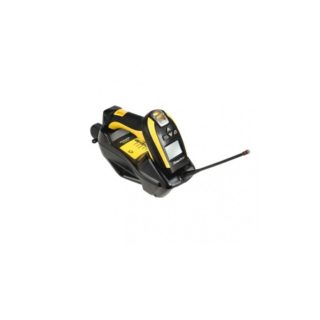

PowerScan PM9500

Drop us a line

The PowerScan PM9500 from Datalogic is a robust area imager offering excellent mobility for industrial operation. The wireless scanner impresses with Datalogic’s STAR 2.0 narrow band radio version with 433 MHz. Compared to its predecessor, the STAR 2.0 is up to 25 times faster and offers a larger range up to 100 m (with an unobstructed view). In addition to the standard version there is also a powerful high performance variant, equipped with an innovative liquid lens for scanning distances ranging between direct contact to over 1 m. To round out the offer, there are also versions available with a display and four programmable keys, plus a DPM variant.

The decoding engine of the PM9500 delivers the strong reading performance you are accustomed to, and also reliably captures images. Its housing is robust enough to withstand repeated drops from 2 m. It is IP65-certified against water and dust, and works flawlessly in extreme temperatures (-20 to +50°C), making it ideal for both indoor and outdoor operation. And, because the PM9500 is entirely backwards compatible it also is a budget saver.

Features

Robust 2D industrial scanner with narrow band radio
Range up to 100 m with an unobstructed view
Aggressive scanning performance thanks to powerful decoding engine
Various models for 1D/2D and Direct Part Marking barcodes
Optionally with display and keys for 2-way communication

Specifications

Datalogic Star Cordless System	Effective Radiated Power:433 MHz: <10 mW; 910 MHz: <50 mW Point-to-Point Configuration, Multi-Point Configuration: Max. Readers per Radio Receiver: 32
Radio Frequency	433 MHz; 910 MHz
Radio Range (Open Air)	433 MHz: 100 m / 328 ft low speed; 50 m / 164 ft high speed 910 MHz: 150 m / 492 ft low speed;80 m / 262 ft high speed Seamless Roaming, Two Way Communications
1D / Linear Codes	Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
2D Codes	Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes	Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
Stacked Codes	EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites.
Battery	Battery Type: Lithium-Ion 2150 mAh Charge Time: External Power: 4 hrs; Host Power: 10 Hours
Reads Per Charge	Continuous Reading: 30,000 +
Cradle Indicator LEDs	Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)
Current	Charging (Typical): External Power: 800 mA @ 10 VDC; POT: 500 mA @ 5 VDC
Operating (Typical)	150 mA @ 10 VDC
Input Voltage	External Power: 10-30 VDC; POT: 5 VDC +/- 10%
Ambient Light	0 – 100,000 lux
Drop Resistance	Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface PM9500: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface
ESD Protection (Air Discharge)	20 kV
Humidity (Non-condensing)	95%
Particulate And Water Sealing	IP65
Temperature	Operating: -20 to 50 °C / -4 to 122 °F Battery Charging: 0 to 45 °C / 32 to 113 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F
Interfaces	Keyboard Wedge; RS-232; RS-485; USB: OEM USB; USB COM; USB HID Keyboard
Colors Available	Yellow/Black
Dimensions	Cradle: 24.0 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in PBT9500: 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in
Display	PM9500/D: Display Type: Graphic with White Backlight; Font Dimensions: User selectable (6 lines x 21 columns default) Screen Dimensions: 48 x 132 pixels
Keypad	PM9500/D: 4 Configurable Keys
Weight	PM9500: 380.0 g / 13.4 oz PM9500/D: 400.0 g / 14.1 oz
Imager Sensor	PM9500: 864 x 544; PM9500-HP: 1280 x 1024
Light Source	Aiming: 630 – 680 nm VLD Illumination: White LEDs
Print Contrast Ratio (Minimum)	15%
Reading Angle	Pitch: +/- 40°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 40°
Reading Indicators	Beeper (Adjustable Tone and Volume); Datalogic’s 3GL (Three Green Lights) technology and loud beeper for good-read feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs
Resolution (Maximum)	PM9500: 1D Codes: 4 mil; 2D Codes: 7.5 mil PM9500-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
Depth Of Field	Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent. PM9500 4 mils 6.0 to 17.0 cm / 2.3 to 6.7 in 7.5 mils Data Matrix 9.0 to 12.0 cm / 3.5 to 4.7 in 10 mils Data Matrix 4.0 to 18.0 cm / 1.5 to 7.0 in 10 mils PDF417 2.0 to 25.0 cm / 0.8 to 9.8 in 13 mils 4.0 to 45.0 cm / 1.5 to 17.7 in 20 mils 4.0 to 55.0 cm / 1.5 to 21.6 in 40 mils 4.0 to 85.0 cm / 1.5 to 33.4 in PM9500-HP 2.5 mils 2.0 to 6.0 cm / 0.8 to 2.3 in 4 mils Data Matrix 2.0 to 6.0 cm / 0.8 to 2.3 in 10 mils Data Matrix 2.0 to 20.0 cm / 0.8 to 7.8 in 10 mils PDF417 2.0 to 30.0 cm / 0.8 to 11.8 in 13 mils 3.0 to 60.0 cm / 1.1 to 23.6 in 20 mils 3.0 to 70.0 cm / 1.1 to 27.5 in 40 mils 3.0 to 110.0 cm / 1.1 to 43.3 in
Agency Approvals	The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance	Complies to China RoHS, Complies to EU RoHS, Complies to R.E.A.C.H.
LED Classification	IEC 62471 Class 1 LED
Laser Classification	Caution Laser Radiation – Do not stare into beam CDRH Class II: IEC 60825 Class 2
Datalogic Aladdin	Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JavaPOS	JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.
Remote Host Download	Available on request
Warranty	3-Year Factory Warranty
