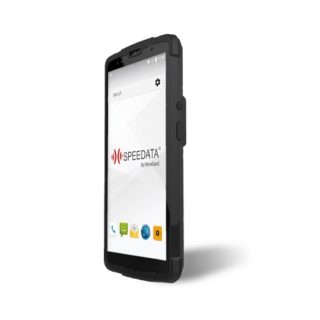

SD55 Series

Drop us a line

Take your business to the next level with this rugged android mobile computer

With its capacitive touchscreen and Android 8.1 operating system, the SD55 Lynx is everything you’ve asked for in mobile scanning, and more! The device supports a rugged exterior that protects it from inevitable bumps and drops. The SD55 Lynx series comes in different versions optimised for your industry. Equipped with UHF Antenna, the SD55UHF Lynx can easily scan those hard-to-reach areas of your stockroom. The SD55MD Lynx is designed to fit the EC60601-01 medical standard, making it your go-to mobile scanner for healthcare professionals.

Features

Supports : 1D and 2D barcodes
Software : Built on Android 8.1
Touch screen : 5.5 inch (1440 x 720) 5 point capacitive touch screen
Processor : Octa core 2.0FHz CPU
Memory : 4GB RAM and 64GB ROM memory
Offers : Wi-Fi 802.11 a/b/g/n (2.4GHz & 5GHz) dual frequency, camera, NFC, GSM, WCDMA
Accessories : Supplied with cradle.

Specifications

SOC	RK3368, Cortex-A53 1.5 GHz , PowerVR G6110 GPU
Operating System	Android 7.1
Memory	2GB DDR3, 8GB eMMC
Dimensions	252 × 184 × 33mm
Material	PC + ABS plastic
Weight	615 grams, main body only, without power adapter and metal bracket
Display	10.1” WXGA, 1280*800 TFT LCD display/ 10 points Capacitive Touch
VESA mount holes	Metal fitting mounting screw holes: 75*75 mm
Clock Battery	Lithium-ion non-rechargeable coin battery for RTC
DC – input	AC 100-240V, 50-60Hz, 2A Max, DC12V±5%
Power consumption	1KHz audio playback etc. about 18W maximum, OFF: 0W
LED Indicator	1x LED / Power Supply ON: red, then turns green once kernel boot up Power Supply OFF: LED off
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 55°C (14°F to 131°F)
Humidity	20% to 65% (40°C)
Sealing	IP54(front panel)
1D Barcodes	Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, GS1 Composite Code, Matrix 2 of 5, Code 11, Industrial 25, Standard 25, Plessey, MSI-Plessey, etc.
2D Barcodes	PDF417, QR Code, Data Matrix, Chinese Sensible Code, Aztec Code, Maxicode, MicroPDF417, etc.
WiFi	IEEE 802.11 a/b/g/n/ac
Bluetooth	BT 4.1
LAN	RJ45 Ethernet, 10/100/1000 BaseT / POE (Power Over Ethernet)
Camera	Front: 5.0 MP camera
Audio	1x 3.5mm Headset + MIC jack, 2x Integrated speakers 8Ω / 1.3W
Sensor	G Sensor
Other H / W	VESA mount: Metal-fitting mounting screw holes
Functional keys	(Vol+ / Vol-) / (Up / Down) / Back / Power switch
Optional Module	NFC reader / MSR reader (available in Q2/2019)
USB Port	1x USB 2.0 host, type A port, 1x Micro USB 2.0 port
SD Card Slot	SD Card (SDHC class 10 compatible) slot with cover
GPIO Port	1x GPIO port
Expansion Slot	2x POGO-PIN, USB 2.0 / Supports up to two modules working concurrently
DC-in	4mm DC-In jack, 12V / 2A
Video	MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio	MP2, WMA, WAV, AAC, OGG, ASF
Picture	JPG, BMP, GIF
Certificates	CE, FCC, RoHS
Default Accessory	Multi -pin, multi-plug AC/DC adapter with power cord VESA 75 Wall Mount
Packaging	1PCS packaging box dimensions: 29120484mm 10PCS packaging box dimensions: 437306434mm
