TSC TDP-225 Series

Drop us a line

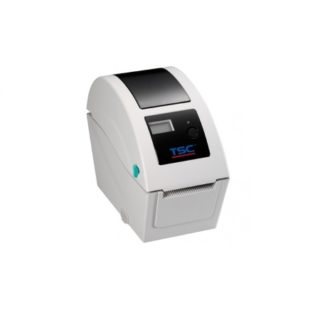

The small direct thermal printer TDP-225 from TSC offers your more space: with a mere 109 mm width, it fits into nearly any work space. It will also impress you with its low price tag and printing properties. It clearly and reliably prints onto media up to 60 mm wide at 8 dots/mm (203 dpi). The medium format predestines the desktop printer for shelf labeling, inventory management, shipping labels for low volume mailing series and many additional applications.

The user-friendly double-walled clamshell design simplifies media changes and ensures for a smooth run. You only need to open the cover and place the labels into the centrally located spring-loaded material tray. An optional LCD display gives you additional status reports about the current print job. Because of its standard integrated industrial emulations (such as EPL and ZPL) the TDP-225 is compatible with nearly any other printer. Connect it via USB or optional Ethernet interface easily into the existing environment. With the optional keyboard, the TDP-225 also operates in stand-alone mode.

Key Features

Space-saving direct thermal printer for tight spaces
Prints labels for inventory management, shelf labeling, addresses, etc.
Max. medium width: 60 mm; max. print speed: 127 mm/sec.
With optional LCD display for status reports
Industrial emulations EPL and ZPL integrated, standard

Specifications

Printer model	TDP-225
Resolution	8 dots/mm (203 DPI) 12 dots/mm (300 DPI)
Printing method	Direct Thermal
Max. print width	54 mm (2.13“) 48 mm (1.89“)
Max. print length	2,286 mm (90“) 1,016 mm (40“)
Enclosure	Clamshell design with wall mount hole at the bottom cover
Physical dimension	109 mm (W) x 171 mm (H) x 209 mm (D) 4.29” (W) x 6.73” (H) x 8.23” (D)
Weight (including battery)	1.2 kg (2.65 lbs)
Label roll capacity	127 mm (5“) OD
Processor	32-bit RISC CPU
Memory	• 4 MB Flash memory • 8 MB SDRAM • microSD card reader for Flash memory expansion, up to 4 GB
Interface	• RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps (dealer option) • Bluetooth (user option) • External 802.11 b/g/n wireless (user option)
Power	External universal switching power supply • Input: AC 100-240V, 1A, 47-63Hz • Output: DC 24V, 2.08A, 50W
Operation switch, button	LED 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
Sensors	• Transmissive gap sensor • Black mark reflective sensor (position adjustable) • Head open sensor
Real Time Clock	Standard
Internal fonts	• 8 alpha-numeric bitmap fonts • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 • 2D bar code PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZTM
Media type	die-cut, black mark, fan-fold, notched, wristband (outside wound)
Media width	15 ~ 60 mm (0.59“ ~ 2.36“)
Media thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter	25.4 ~ 38 mm (1” ~ 1.5”)
Label length	10 ~ 2,286 mm (0.39“ ~ 90“) 10 ~ 1,016 mm (0.39“ ~ 40“)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage	-40 ~ 60°C, 10~ 90% non-condensing
Safety regulation	regulation FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC
Environmental concern	Comply with RoHS, WEEE
Accessories	• Windows labeling software CD disk • Quick start guide • USB cable • Power cord • External universal switching power supply
Limited warranty	• Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first
Factory options	• 128 x 64 pixels graphic type LCD display with back light
User options	• Bluetooth module (serial interface) • 802.11 b/g/n wireless module (serial interface) • KP-200 Plus keyboard display unit • KU-007 Plus programmable smart keyboard
Dealer options	• Internal Ethernet interface (10/100 Mbps) • Peel-off module • Guillotine cutter (full cut and partial cut)
