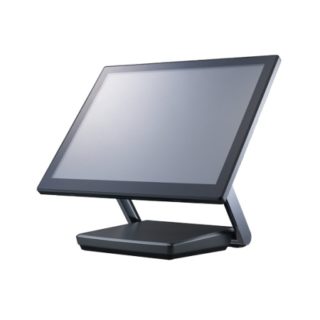

XPOS is a modern and powerful point of sale system designed with Intel 7th generation Celeron, Core i3 and Core i5 processors.
Key Features
- Slim : Panel PC,Stand Arm,Stand Base
- Flexible Base
- Extendable : Dock the second display on the system or extend the display out of a flat surface
- Suitable for multiple applications
| Processor |
Intel® Celeron® Processor 3965U, 2M Cache, 2.20 GHz
Intel® Core™ i3-7100U Processor, 3M Cache, 2.40 GHz
Intel® Core™ i5-7300U Processor, 3M Cache, up to 3.50 GHz |
| System Memory |
4GB Standard, Maximum 32GB (2 x 260-pin DDR4)
|
| Power Supply |
90W (20V / 4.5A) or 130W (20V /6.5A) External Adapter
|
| Storage Device |
1 x M.2 (B+M Key) SATA III and PCIE
1 x M.2 (BM Key) SATA III |
| Speaker |
Internal Speaker 2W x 2 |
| Construction |
Aluminum Die-casting + Plastic + Glass |
| Housing Color |
Galaxy Gray + Black
Silver + Black |
| Size / Resolution |
XP-3685 : 15” TFT-LCD / 1024 X 768
XP-3685W : 15.6” TFT-LCD / 1920 x 1080
|
| Brightness (Backlight Type) & Touch Screen |
400nits (LED) PCAP
|
| Panel PC IO |
USB Port : 1 x USB 1.0 Type A, 1 x USB 2.0 Type A, 1 x USB DP (Reserved for 2nd Display)
FEC DP Port : 1 x FEC DP (Customer Display or 2nd Display) |
| IO1 |
System on Module (Optional) : ARM Cortex A7 Quad Core, 1G DDR3 On Board, 8GB eMMC 5.0 On Board
Storage Device : 1 x SD Card Slot (From SOM)
Serial Port : 2 x External: COM3, COM4 (RJ45)
USB Port : 4 x USB 2.0 Type A
USB DP Port : 1 x USB DP (Connect to Panel PC), 1 x USB DP (2nd Display)
Video Port : 1 x Video Port (From SOM)
Cash Drawer Port : 1 x RJ11 (12V / 24V) Supports 2 Cash Drawers
LAN Port : 1 x LAN
DC Input : 1 x 20V DC-in |
| Supported OS |
Windows 10 Pro, Windows 10 IoT Enterprise |
| Environment |
EMI / Safety : FCC Class B / CE
|
