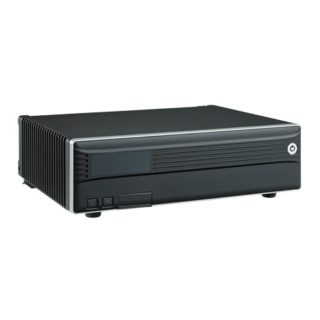

BP-500 is an advanced POS PC that enables incredible performance and reliability to retail environments. BP-500’s innovative design allows for access to key components without detaching any peripherals, taking downtime to a minimum and ensures fast service and simple upgrades.
Specifications
| Processor | Intel® Celeron® G3900TE, 2.3Ghz Intel® Core i3-7101TE, 3.4Ghz Intel® Core i5-7500T, 2.7Ghz (vPro) Intel® Core i7-7700T, 2.9Ghz (vPro) |
| System Memory | 4GB Standard, Maximum 32GB (2×260-pin DDR4) |
| Power Supply | 250W Internal ATX Power Supply |
| Storage Device | 2 x 2.5” SATA HDD or SSD , 1 X M.2 |
| Chipset | BP-567 : Intel® Q170 BP-566 : Intel® H110 |
| Construction | Aluminum Die-casting + Plastic |
| Housing Color | Black with Silver Trim, White with Silver Trim |
| I/O Ports | Serial Port : 4 x External: COM 1, COM 2, COM 3, COM 4 (DB9) USB Port : 6 x External (Rear USB 2.0 x 2, USB 3.0 x 2; Front USB 2.0 x 2) Cash Drawer Port : 1 x RJ11 (12V / 24V) Keyboard / Mouse : 1 x PS/2 LAN Port : 1 x RJ45 Gigabit LAN Audio Port : 1 x Line Out, 1 x Mic In Video Port : 1 x VGA (5V/12V jumper setting) , 1x DVI-I DC Output : 1 x 12V DC Jack 2.5 mm |
| Optional I/O Board (Factory Install Only) | Type A : 1 x Bi-directional Parallel port; Serial Port: COM A & COM B (RJ45) with RI / 5V / 12V Selectable; DC Output: 1 x 24V; 1 x Mic-in Type B : 1 x Bi-directional Parallel port; Serial Port: COM A & COM B (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 24V; 1 x Mic-in Type C : x Bi-directional Parallel port; Serial Port: COM A & COM B (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 12V; 1 x Mic-in Type E : 1 x Bi-directional Parallel port; Cash Drawer Port: 2 x 24V (RJ11) ; 1 x Mic-In Type G : 1 x Bi-directional Parallel port; Powered USB Port: 3 x 12V Type H : 1 x Bi-directional Parallel port; Powered USB Port: 1 x 24V, 2 x 12V Powered USB 24V + Type G : 3 x 12V Powered USB Port, 1 x 24V Powered USB Port Powered USB 24V + Type H : 2 x 12V Powered USB Port, 2 x 24V Powered USB Port |
| Supported OS | Windows 10 |
| Dimensions & Weight | Product (W x H x D) : 310 x 95 x 235 mm, 5 Kg With Carton (W x H x D) : 520 x 150 x 340 mm, 6 Kg |
| Operation Conditions | Operating Temperature : 0˚C ~ 40˚C (32˚F ~ 104˚F) Storage Temperature : 20˚C ~ 60˚C (-4˚F ~ 130˚F) |
